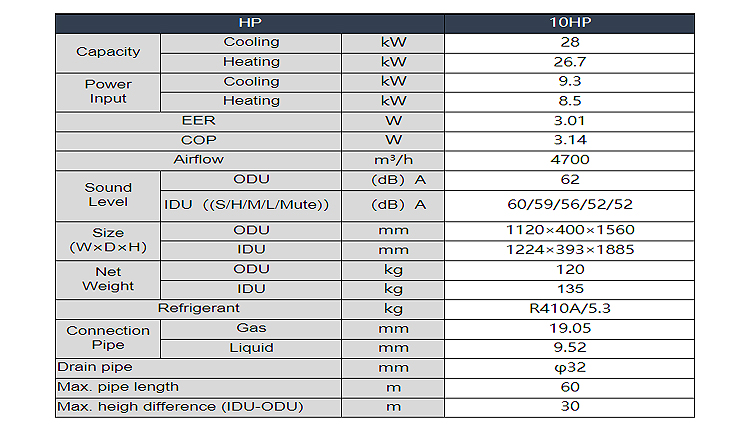

Items |
MANJA |
|
Cooling capacity(kw) |
28 |
|
Heating capacity(kw) |
26.7 |
|
Cooling PI(kw) |
9.3 |
|
Heating PI(kw) |
8.5 |
|
EER |
3.01 |
|
COP |
3.14 |
|

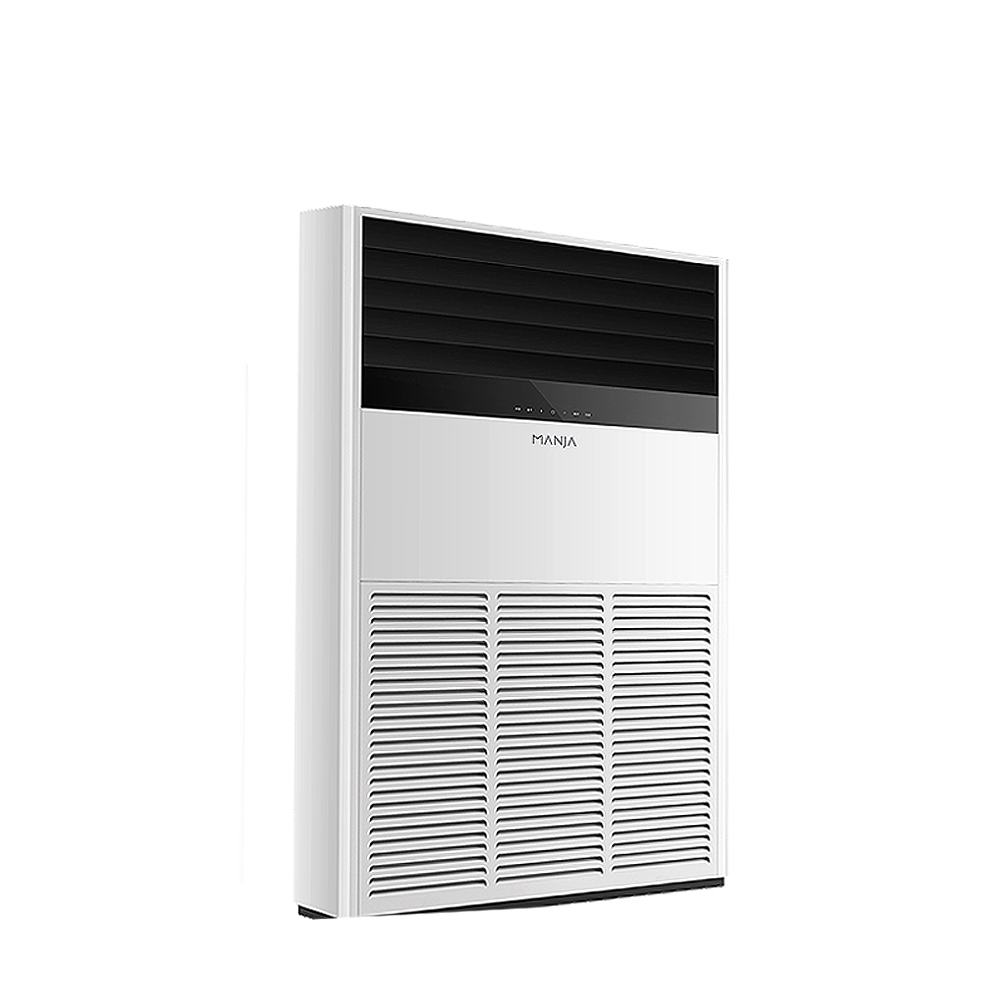

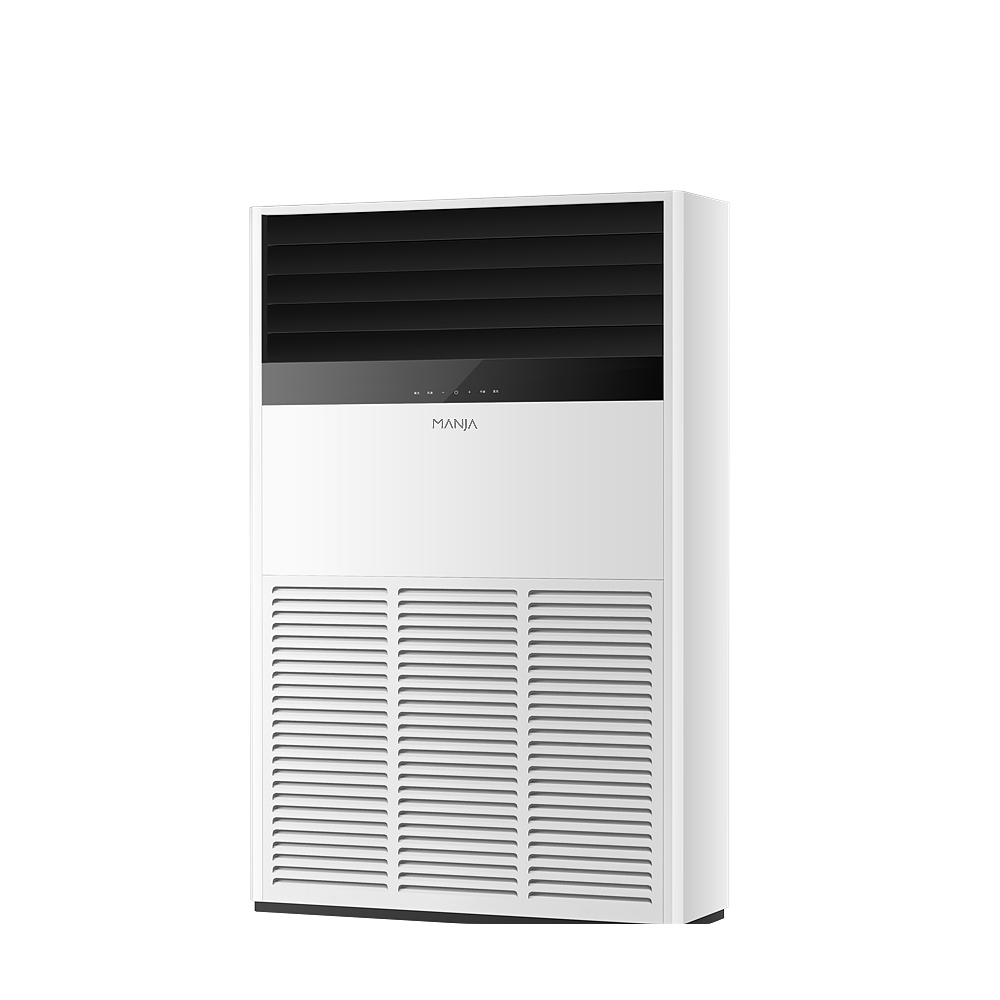

IDU air volume (High speed) |
4700m3/h |
|

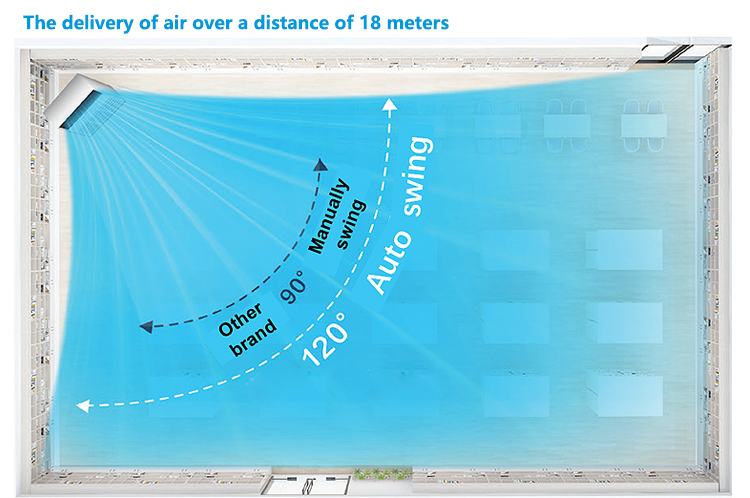

IDU air supply distance |
18m |
|
IDU sound level(High speed) |
60dB(A) |
|

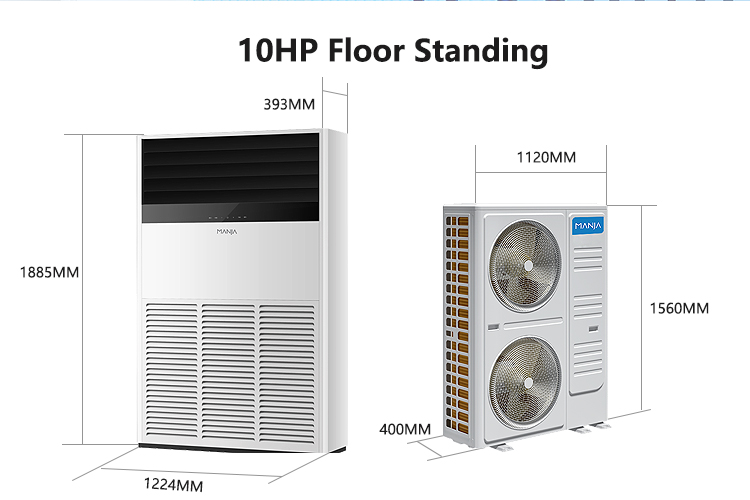

IDU dimension (WxDxH) |
1224×393×1885 |
|
IDU weight |
135kg |
|
IDU footprint |
0.442m2 |
|

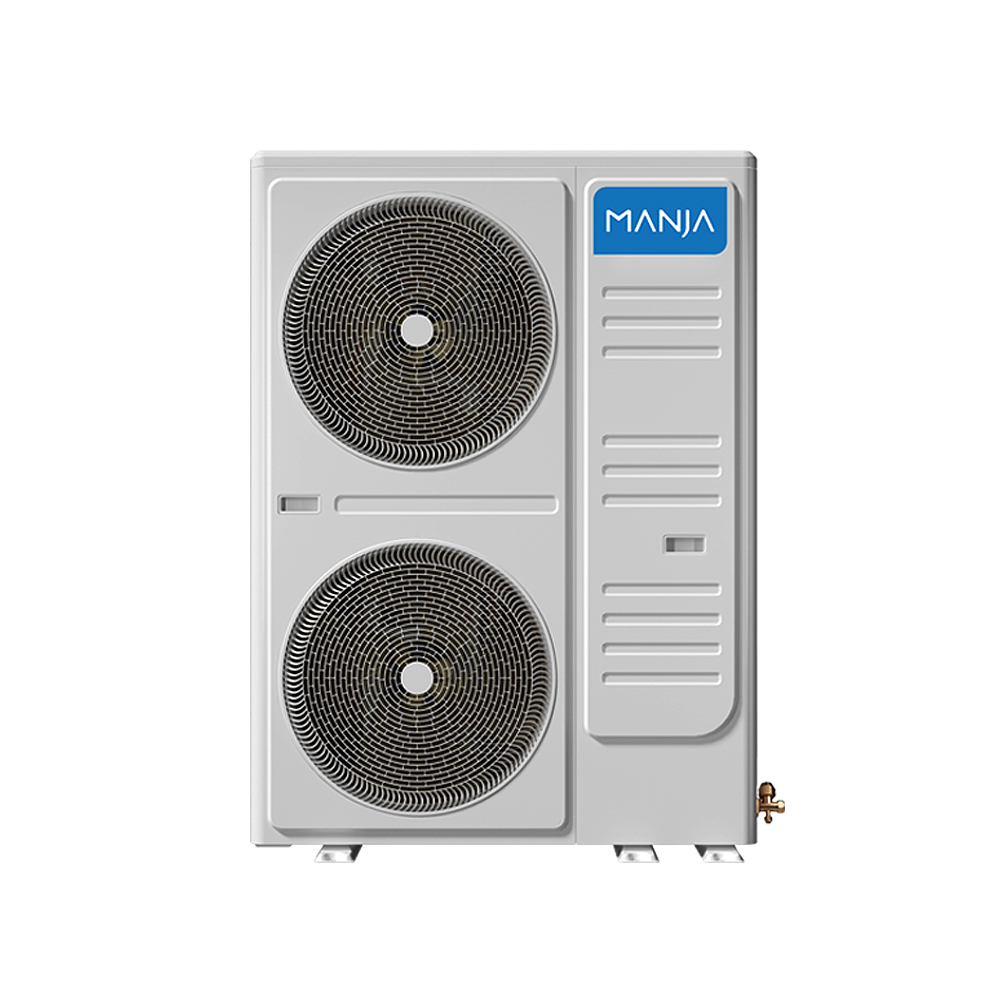

ODU sound level(High speed) |
62dB(A) |
|
ODU dimension (WxDxH) |
1120×400×1560 |
|
ODU weight |
120kg |
|
ODU footprint |
0.448m2 |
|

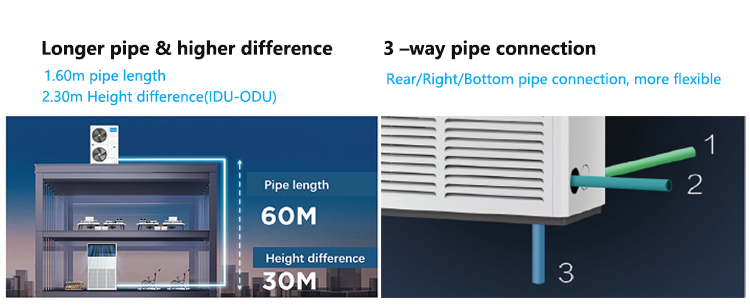

Total pipe length |
60m |
|
Height difference (IDU-ODU) |
30m |
|
Ambient operation temp. range (cooling) |
0-60℃ |
|
Ambient operation temp. range (heating) |
-20-24℃ |
|

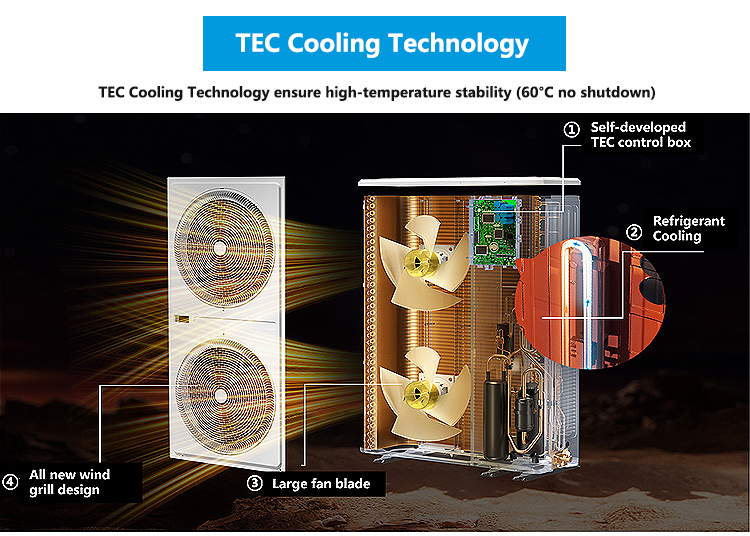

Maximum ambient operation temp. |
60℃ |
|

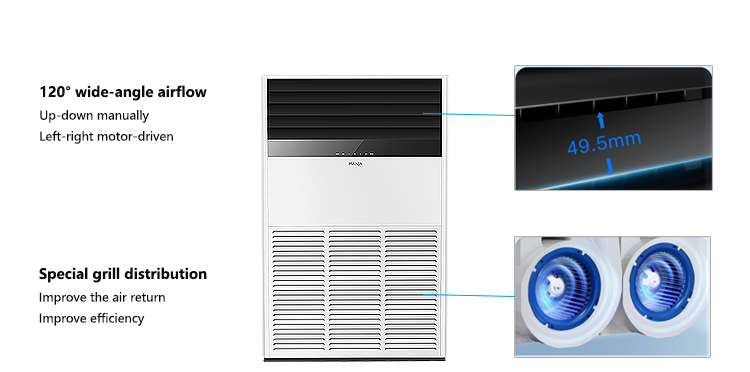

Angle of swing |
120° |
